Meanwell Power Supply 320W for Led Strip 24V Transformer
  • Meanwell Power Supply 320W for Led Strip 24V Transformer
  • Meanwell Power Supply 320W for Led Strip 24V Transformer

Watt:
Input Voltage:
Output Voltage:
IP rating:
Dimmable:
N. Channels:
Size:
Certificate:
Warranty:
Ampere:
design:
Traforato Metallico
design:
Case in alluminio
Connettore:
Con morsetti
Smart:

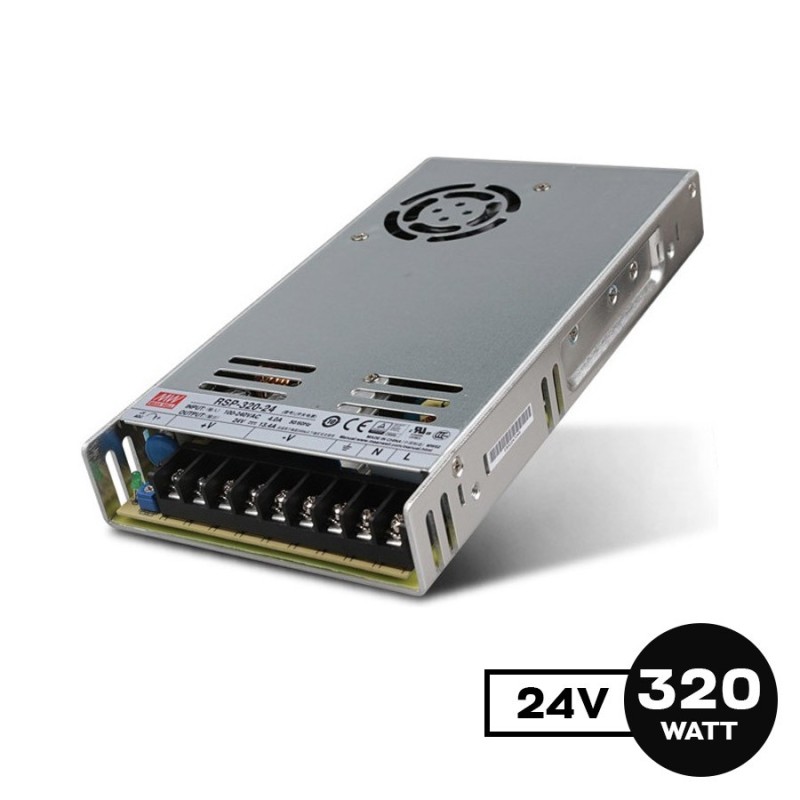

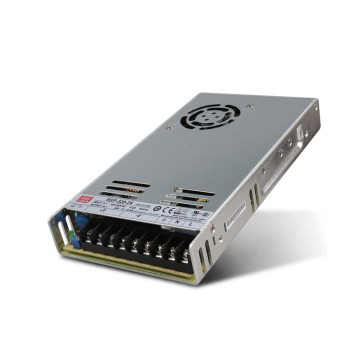

Meanwell Power Supply 320W for Led Strip 24V Transformer RSP-320-24

1573

DATASHEET: RSP-320


Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

Meanwell original Supply Power LRS-320-24, 320W DC24V  IP20 NOT WATERPROOF Single Output LED Driver Power Supply



SUPPLY POWER: Mean Well Supply Power Series LRS 320W 24V, distributed by KingLed. Suitable for professional use, very compact model, excellent resistance due to its metal cover.

APPLICATION: AC/DC Power Supply for low voltage devices such as LED strips, cameras and similar applications.

FEATURES: Output DC 24V (ADJ 20-26.4V). You can set ranges for voltage regulation with the voltage regulator (Vadj.) It is possible to set the voltage between 20V and 26.4V.

PROTECTION: NOT WATERPROOF IP20 Supply Power, for indoor use. Equipped with an integrated system to protect against Over Voltage, Over Load, Short Circuit and Over Temperature.

WARRANTY: KingLed offers product warranty service for all KingLed products and provides fast and comprehensive customer service before, during and after the purchase.



 MeanWell  Original product ­- produced and distributed by KingLed.



MeanWell RSP Series is a new generation of high-performance switching power supplies that ensures exceptional efficiency and durability with high-quality materials (perforated aluminium).

Ideal for a continuous and prolonged use, suitable for both industrial and professional applications, for LED strips and other low-voltage devices.

Equipped with an integrated system to protect against Over Voltage, Over Load, Short Circuit and Over Temperature

You can set ranges for voltage regulation with the voltage regulator (Vadj.) It is possible to set the voltage between 20V and 26.4V

DATA SHEET:

MeanWell Original Product

Output Current: 13.4A
Output Power: 321.6W
Output Voltage: DC 24V

Driver: AC / DC

Constant voltage

Number of Outputs: 3
Application: Industrial / Professional
Dimming: NO
Input Voltage: 85-264V AC
Material: Aluminium

Waterproof Type: IP20

Dimension: 215 x 115 x 30 mm
Working Temperature: min: -30 C° max: +70 C°
Protection: Over Voltage / Over Load / Short Circuit / Over Temperature
Efficiency: 89%
3 Years Warranty
Certifications: UL60950-1, TUV EN60950-1 ,CCC GB4943 approved / Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3,GB9254 class B,GB17625.1 / Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
