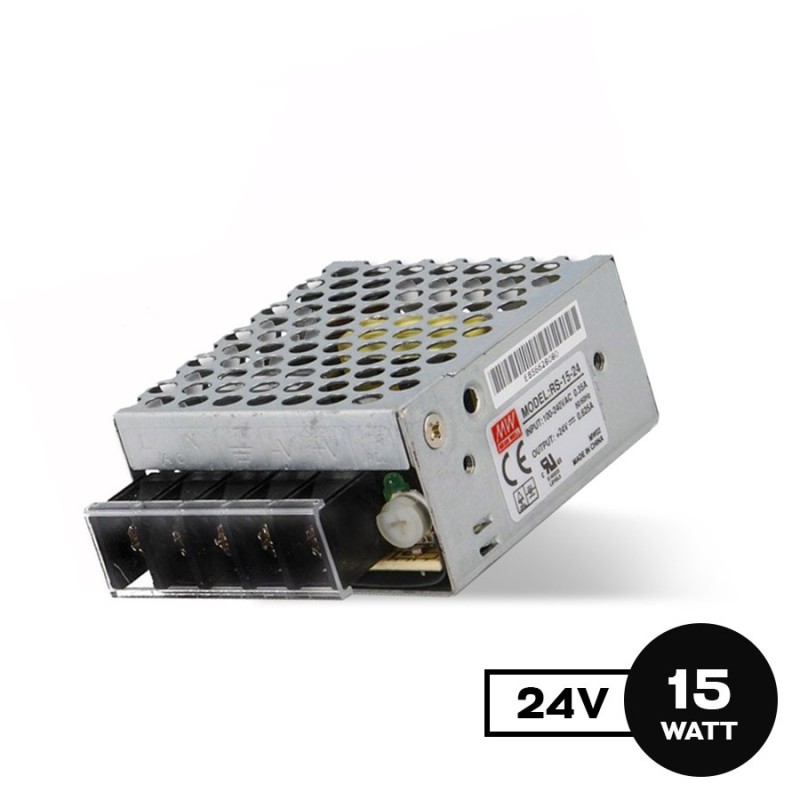

Meanwell Power Supply 15W for Led Strip 24V Transformer RS-15-24
  • -15%

Meanwell Power Supply 15W for Led Strip 24V Transformer RS-15-24

Led power supplies Mean well LRS - IP20

Model: 1578
Do you have a VAT number and work in the lighting industry? Click and discover great advantages!

We dedicate only the best to you

We value your work through dedicated prices and services that will help you make your daily job easier and more effective.

REGISTER AND SAVE UP TO 30%

Register on our website now and buy our Led lighting products at discounted prices up to 30%.

But advantages don't end here: we guarantee you all the technical assistance you need, products ready for delivery and fast shipping. We dedicate to you who have a VAT number unique prices and services.

What are you waiting for? Register and follow the roar of saving. Close
Payment Visa Mastercard Paypal American Express Discover JCB
€7.21
€6.13 Save 15%
Quantity

2 years minimum warranty / substitution of returned product within 2 working days

Always PRIME shipping with GLS or UPS courier. Delivery within 3-5 days.

You have 30 days for withdrawal and you always get a refund.

DOWNLOAD DATASHEET: RS-15

Watt
Watt
15W
Input Voltage
Input Voltage
85-264V
Output Voltage
Output Voltage
24V
IP rating
IP rating
IP20
Dimmable
Dimmable
NO
Size
Size
62.5 x 51 x 28 mm
Certificate
Certificate
CE ROHS UL
Warranty
Warranty
3 Years

Meanwell original Supply Power RS-15-24, 15W DC24V  IP20 NOT WATERPROOF Single Output LED Driver Power Supply



SUPPLY POWER: Mean Well Supply Power Series LRS 75W 24V, distributed by KingLed. Suitable for professional use, very compact model, excellent resistance due to its metal cover.

APPLICATION: AC/DC Power Supply for low voltage devices such as LED strips, cameras and similar applications.

FEATURES: Output DC 24V (ADJ 22-27.6V). You can set ranges for voltage regulation with the voltage regulator (Vadj.) It is possible to set the voltage between 22V and 27.6V.

PROTECTION: NOT WATERPROOF IP20 Supply Power, for indoor use. Equipped with an integrated system to protect against Over Voltage, Over Load, Short Circuit and Over Temperature.

WARRANTY: KingLed offers product warranty service for all KingLed products and provides fast and comprehensive customer service before, during and after the purchase.



 MeanWell  Original product ­- produced and distributed by KingLed.



MeanWell RS Series is a new generation of high-performance switching power supplies that ensures exceptional efficiency and durability with high-quality materials (perforated aluminium).

Ideal for a continuous and prolonged use, suitable for both industrial and professional applications, for LED strips and other low-voltage devices.

Equipped with an integrated system to protect against Over Voltage, Over Load, Short Circuit and Over Temperature.

You can set ranges for voltage regulation with the voltage regulator (Vadj.) It is possible to set the voltage between 22V and 27.6V

DATA SHEET:

MeanWell Original Product

Output Current: 0.625A
Output Power: 15W
Output Voltage: DC 24V

Driver: AC / DC

Constant voltage

Number of Outputs: 1
Application: Industrial / Professional
Dimming: NO
Input Voltage: 85-264V AC
Material: Aluminium

Waterproof Type: IP20

Dimension: 62.5 x 51.2  x 28 mm
Working Temperature: min: -30 C° max: +70 C°
Protection: Over Voltage / Over Load / Short Circuit / Over Temperature
Efficiency: 82%
3 Years Warranty
Certifications: UL60950-1, TUV EN60950-1 ,CCC GB4943 approved / Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3,GB9254 class B,GB17625.1 / Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

1578
166 Items

Data sheet

Watt
15W
Input Voltage
85-264V
Output Voltage
24V
IP rating
IP20
Dimmable
NO
Size
62.5 x 51 x 28 mm
Certificate
CE ROHS UL
Warranty
3 Years
