Side View Led Strip CRI95 24W 1200lm 12V IP20 PCB 8mm Coil 300
  • Side View Led Strip CRI95 24W 1200lm 12V IP20 PCB 8mm Coil 300
  • Side View Led Strip 24W 1200lm 12V IP20 PCB 8mm 300 SMD Reel 315
  • Side View Led Strip 24W 1200lm 12V IP20 PCB 8mm 300 SMD Reel 315
  • Side View Led Strip 24W 1200lm 12V IP20 PCB 8mm 300 SMD Reel 315
  • Side View Led Strip 24W 1200lm 12V IP20 PCB 8mm 300 SMD Reel 315
  • Side View Led Strip 24W 1200lm 12V IP20 PCB 8mm 300 SMD Reel 315

Led/Mt:
Watt:
24 W
PCB:
8 mm
CRI:
95+
Luminous Flux:
Input Voltage:
DC 12V
Color Temperature:
4000K
Color Temperature:
6000K
Color Temperature:
3000K
IP rating:
IP20
Double-sided tape:
Dimmable:
Si
Certificate:
Warranty:
Cutting Length:
50 mm
Lunghezza Bobina:
5 Metri
Altezza PCB + SMD:
2 mm
WATT al Metro:
4,8 W/mt
Tipo di Striscia Led:
Luce Bianca
Caratteristiche Speciale:
Alta Resa Cromatica
Caratteristiche Speciale:
Luce latarela
Lumen al metro:
240 lm/mt

Side View Led Strip CRI95 24W 1200lm 12V IP20 PCB 8mm Coil 300 SMD 315

SV30024

€20.00
,
5/ 5
Color Temperature (Kelvin)
Quantity
-
+
Totale:
0% Tax included


Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

LED strips are specially designed with LEDs shining sideways. Used for for illuminating vertical curved faces. This side-view LED strip shines the light off the edge of the strip, which is perfect for many decorative applications. You get high Color Rendering Index for superior quality lighting, and they work with all the same dimming and control systems as our other LED strip lighting.

Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel. It is highly suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.

The working voltage of the strip is 12V DC (Power Supply NOT Included)

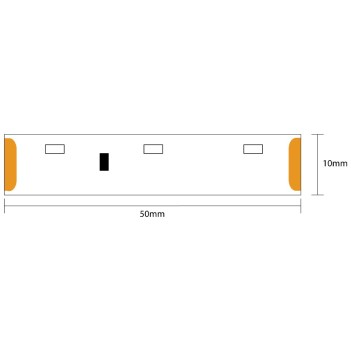

The strip can be dimmed and cut every 3 LEDs (50mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.

Rated Power: 24W. Power Consumption: 4.8 W/m

Brightness: 1200 Lm, Lumen per meter: 240 Lm/Mt

Specification:

PCB Width: 8mm
PCB+SMD 2mm
Length:5 meter per roll
Voltage: 12V DC
Rated Power: 24W
Power Consumption: 4.8W /mt
Brightness: 1200lm
Lumen per Meter: 240lm /mt
Colour Temperature (CCT): 3000K/4000K/6000K
Colour Rendering (CRI) 95+
LED Type: 315 x 300pcs
Cutting Length: Every 3 LEDs
Waterproof Type: IP20
Dimming: Yes.
Working Temperature: -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years

2412

Data sheet

Led/Mt
Watt
24 W
PCB
8 mm
CRI
95+
Luminous Flux
Input Voltage
DC 12V
Color Temperature
3000K
4000K
6000K
IP rating
IP20
Double-sided tape
Dimmable
Si
Certificate
Warranty
Cutting Length
50 mm
Lunghezza Bobina
5 Metri
Altezza PCB + SMD
2 mm
WATT al Metro
4,8 W/mt
Tipo di Striscia Led
Luce Bianca
Caratteristiche Speciale
Alta Resa Cromatica
Luce latarela
Lumen al metro
240 lm/mt
