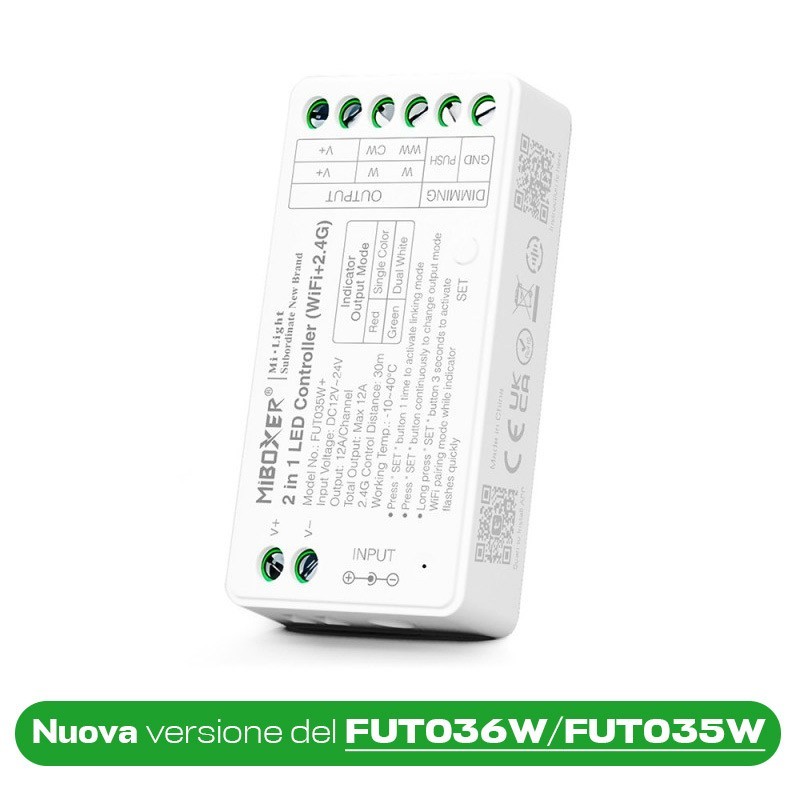

MiBoxer Mi Light FUT035W+ WIFI+RF Receiver for Single Colour Led Strip and CCT Dual White 12/24V

MiBoxer FUT035W+ is a mini Dimmer Receiver for both CCT (Dual White/Dynamic White) and single-colour LED strips with 2.4Ghz RF module + integrated wifi for even smarter management.

With this receiver you can manage your LED strip from remote control, smartphone, voice assistant and from local control like a wall button.

If you are looking for a smart led strip receiver with voice commands, then this product is for you.

It is also compatible with one or more Led Strips connected in parallel. MINI version, with reduced dimensions, but with the same power (Max 12A)!

The 2.40Ghz RF signal reaches up to 30m.

This receiver is also equipped with PUSH dimming. Thanks to this module, after connecting it to a push button, you can also control your LED strip from a classic wall button. Press briefly to switch on and off, hold down instead to adjust the light intensity.

On the device you will find the SET button that allows you to set the receiver to the required mode (single colour or dual white). If you are connecting it to a single-colour LED strip, press the set button until the indicator light turns red. Instead, to set it to DUAL WHITE mode the indicator light should be green.

Functions

On/Off

Brightness management from 10%-100%

White light temperature management for CCT LED strips

Goodnight/Goodmorning mode

Biorhythm Mode

Music Light Mode

Timer/programming mode

SOFT on/off

Customisable scenes

Compatible with all MIBOXER remote controls

DATASHEET:

Model: FUT035W+

Voltage: DC 12V / 24V

Wireless protocol: RF 2.4Ghz + Wifi

Maximum current per channel: 12A

Maximum total current: 12A

Maximum radio frequency control distance: 30 metres

Dimensions: 74.5 x 36 x 17 mm

Creating an LED home automation system is simple and innovative with Mi Light MiBoxer products.

King Led SRL IS THE OFFICIAL ITALY RESELLER OF MI-LIGHT®.

MiBoxer® is the new sub-brand of Mi Light

CONNECTIONS

Input for a power supply with Jack 5.5 connector

Input V-: Negative transformer wire (usually black)

Input V+: Positive transformer wire (usually red)

Output Led V+: Positive wire from single-colour (red) or CCT LED strip (usually Brown)

Output W: Black wire from single-colour LED strip

Output CW: White wire

Output WW: Yellow wire

How to synchronise the MiBoxer FUT035W+ to a MiBoxer remote control

- Install the receiver correctly to a power supply and LED strip.

- Set the receiver to the mode compatible with your led strip

- Set the receiver to pairing mode (the indicator light on the device starts flashing)

- Check that the remote control is compatible with the FUT035S+ Receiver

- Switch off the Receiver (by removing power from the power supply)

- Switch on the Receiver

- When the LED strip connected to the Receiver
