Actec Power Supply 50W 12V DIM12-50 - Phase Cut Dimmer DIM12-50 en
  • Actec Power Supply 50W 12V DIM12-50 - Phase Cut Dimmer DIM12-50 en
  • Actec Power Supply 50W 12V DIM12-50 - Phase Cut Dimmer DIM12-50 en
  • Actec Power Supply 50W 12V DIM12-50 - Phase Cut Dimmer DIM12-50 en
Watt:
50 W
Input Voltage:
AC 220-240V
Output Voltage:
DC 12V
IP rating:
IP20
Dimmable:
Yes
Dimmable:
Yes - Triac
N. Channels:
1 Channel
Size:
Certificate:
Warranty:
Ampere:
4,16 A
design:
Plastic Structure
Connector type:
With clamps
Smart:
No
Type of device:
Driver

Actec Power Supply 50W 12V DIM12-50 - Phase Cut Dimmer DIM12-50

3851

€35.90
,
5/ 5
22% Tax included
In Stock
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì


DATASHEET: DIM50/100

Quantity
-
+
Totale: €
22% Tax included

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Consegna entro 24/48H
Oltre 40000 recensioni
Chiamaci +39 03621444684
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

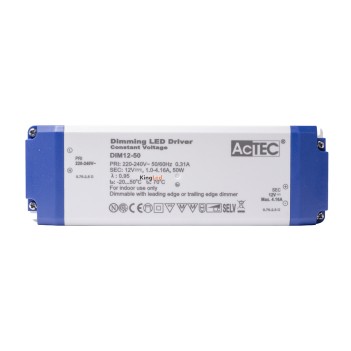

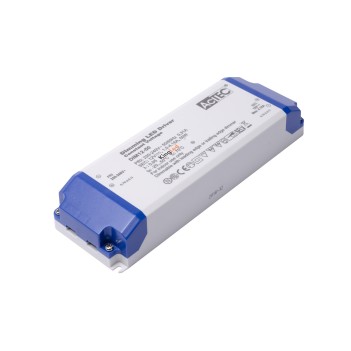

Dimmable AC/DC Power Supply ACTEC DIM12-50

Reliability and ease of installation are the qualities of this product and the philosophy of the AcTEC brand.

The DIM line is a line of Dimmable power supplies, via TRIAC (phase cut) from 1 to 100%.

They can be directly installed on furniture such as under cabinets or wardrobes.

They are suitable for continuous use and are compatible with all low voltage constant voltage devices such as LED strips, cameras, controllers, etc.

This power supply has protection from: Short circuit, Overload, Overtemperature.



FEATURES:

-Maximum Power: 50W
- Maximum Current: 1A - 4.16A
- Driver Type: AC/DC
- Input Voltage: AC 220-240V
- Output Voltage: DC 12V
- Dimmable: TRIAC
- Number of Outputs: 1 output
- Structure: Plastic
- Protection Rating: non-waterproof IP20
- Operating Temperature: -20°C to +50°C
- Full Load Efficiency: 84%
- Protection Class: II
- Isolation: SELV
- Dimensions: 184 x 61 x 32 mm
- Warranty: 3 years

3851
33 Items

Data sheet

Watt
50 W
Input Voltage
AC 220-240V
Output Voltage
DC 12V
IP rating
IP20
Dimmable
Yes
Yes - Triac
N. Channels
1 Channel
Size
Certificate
Warranty
Ampere
4,16 A
design
Plastic Structure
Connector type
With clamps
Smart
No
Type of device
Driver

Specific References

EAN13
8059174099657
