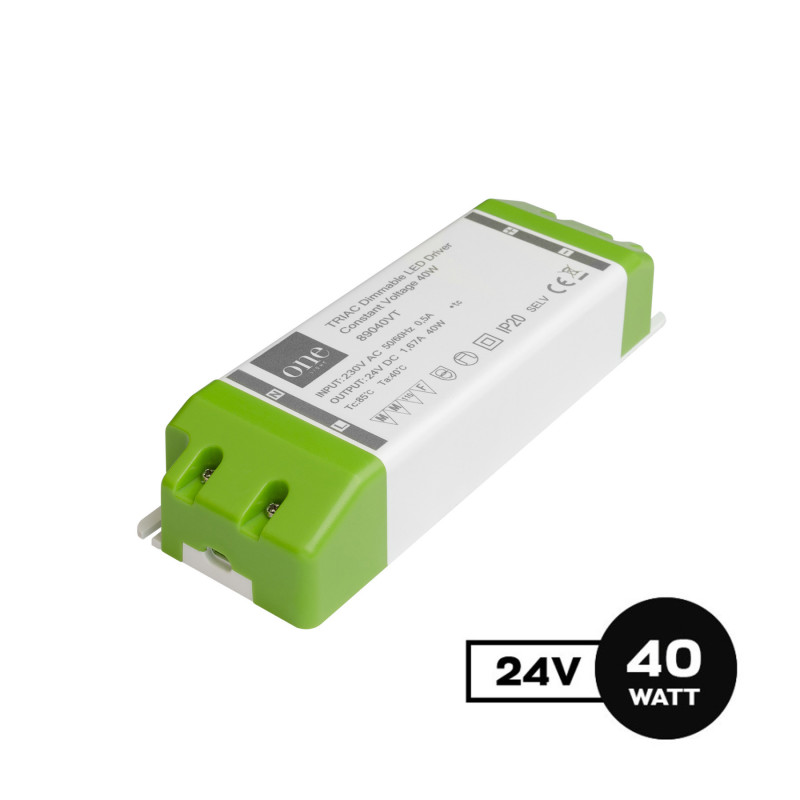

Triac Power Supply 40W 24V Dimmable Phase Cut - DIM-K1 Series
  • Triac Power Supply 40W 24V Dimmable Phase Cut - DIM-K1 Series
  • Triac Power Supply 40W 24V Dimmable Phase Cut - DIM-K1 Series
Watt:
40 W
Input Voltage:
AC 220-240V
Output Voltage:
DC 24V
IP rating:
IP20
Dimmable:
Yes
Dimmable:
Yes - Triac
N. Channels:
1 Channel
Size:
Ampere:
1,67 A
design:
Plastic Structure
Connector type:
With clamps
Smart:
No
Type of device:
Driver

Triac Power Supply 40W 24V Dimmable Phase Cut - DIM-K1 Series

K189040VT

€49.00
,
5/ 5
22% Tax included
In stock - Shipping in 24/48H
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì


Dimmable Triac Power Supply 40W 24V:

Phase Cut Dimming
Power: 1.66A, 40W DC 24V
IP Rating: IP20
Dimensions: 170x57x32 mm

Quantity
-
+
Totale: €
22% Tax included

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Consegna entro 24/48H
Oltre 40000 recensioni
Chiamaci +39 03621444684
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

This Triac dimmable power supply is a reliable solution for powering your LED devices. With a wide range of features and technical specifications, this driver is designed to ensure stable and safe power supply.

The input voltage of 220-240V makes it compatible with most household electrical systems, while the operating frequency at 50-60 Hz means it can be used in various regions without compatibility issues.

With a maximum power of 40W and a high power factor of 0.95, this LED Driver offers remarkable energy efficiency, helping to reduce energy consumption. Additionally, it's designed to deliver a constant voltage of 24V, ensuring your LED devices operate reliably without voltage fluctuations.

The IP20 rating indicates that this driver is suitable for indoor use where it's not exposed to moisture and atmospheric agents. Its metal construction provides durability and strength, while the Triac dimmer allows you to adjust the light intensity conveniently and precisely.

With an operational ambient temperature of up to 40ºC and a maximum temperature of 85ºC, this driver is designed to function in a wide range of thermal conditions. Furthermore, the output terminal with a screw connector simplifies installation.

Input Voltage: 220-240V 50/60 Hz

Power (Watt): 40W

Amps: 1.66A

Dimensions: 170x57x32 mm

Power Factor: 0.95

Output Voltage: DC 24V

IP Rating: IP20

Safety Class: II

Dimmable: Yes

Dimming Protocol: Triac

Ambient Temperature: 40ºC

Operating Temperature: 85ºC

Connector: Screw terminal

K189040VT
99 Items

Data sheet

Watt
40 W
Input Voltage
AC 220-240V
Output Voltage
DC 24V
IP rating
IP20
Dimmable
Yes
Yes - Triac
N. Channels
1 Channel
Size
Ampere
1,67 A
design
Plastic Structure
Connector type
With clamps
Smart
No
Type of device
Driver

Specific References

EAN13
5291889061151
