Driver MeanWell LRS-150-12 150W 12V 12.5A
  • Driver MeanWell LRS-150-12 150W 12V 12.5A
  • Driver MeanWell LRS-150-12 150W 12V 12.5A
Watt:
150 W
Power:
12,500 mA
Input Voltage:
AC 85-264V
Output Voltage:
DC 12V
IP rating:
IP20
Dimmable:
No
N. Channels:
2 Channels
Size:
159 x 97 x 30 mm
Certificate:
CE ROHS UL
Warranty:
3 Years
Ampere:
12,5 A
design:
Perforated Metallic
Connector type:
With clamps
Smart:
No
Type of device:
Driver

Meanwell 150W Power Supply for Led Strip 12V Transformer LRS-150-12

1986

€31.10
€23.33 Save 25%
,
5/ 5
22% Tax included
In Stock
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì
Quantity
-
+
Totale: €
22% Tax included

Sei un Professionista?
Ottieni prezzi più vantaggiosi
Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Consegna entro 24/48H
Oltre 40000 recensioni
Chiamaci +39 03621444684
Richiedi Assistenza
Contattaci tramite Whatsapp
Lun - Gio 9h - 18:30h | Ven 9h - 18h

KingLed specialized retailer in LED lighting

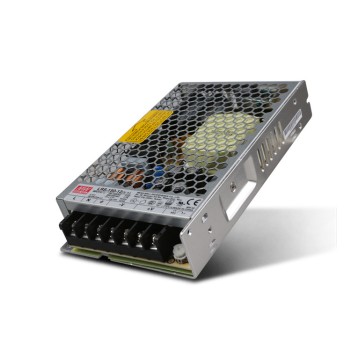

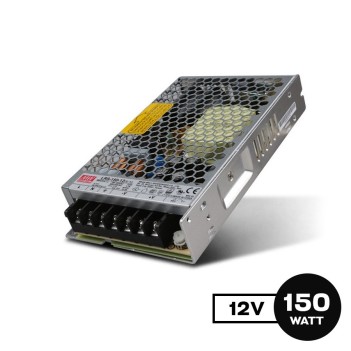

AC/DC Power Supply Mean Well LRS-150-12 150W DC 12V

The MeanWell LRS series power supplies are part of a line of high-performance professional power supplies, featuring a perforated aluminum structure for air dissipation.
They are suitable for continuous use and are also suitable for industrial use.
This power supply is equipped with protection against overload, overvoltage, and short circuit.

The power supply comes with a voltage regulator (Vadj) allowing an output voltage from 10.2V to 13.8V.
It is compatible with all LED strips and devices requiring a constant DC 12V voltage.

DOWNLOAD THE DATASHEET: LRS-150

FEATURES:


- Maximum Power: 150W
- Maximum Current: 12.5A
- Driver Type: AC/DC
- Input Voltage: AC 85-264V
- Output Voltage: DC 12V
- Dimmable: no
- Number of Outputs: 2 outputs
- Structure: aluminum
- Protection Rating: non-waterproof IP20
- Operating Temperature: -30°C to +70°C
- Efficiency: 87.5%
- Dimensions: 159 x 97 x 30 mm
- Warranty: 3 years
- Certifications: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943 approved, Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2 Class A(≤75% Load), EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A

1986
898 Items

Data sheet

Watt
150 W
Power
12,500 mA
Input Voltage
AC 85-264V
Output Voltage
DC 12V
IP rating
IP20
Dimmable
No
N. Channels
2 Channels
Size
159 x 97 x 30 mm
Certificate
CE ROHS UL
Warranty
3 Years
Ampere
12,5 A
design
Perforated Metallic
Connector type
With clamps
Smart
No
Type of device
Driver

Specific References

EAN13
8059174090869
