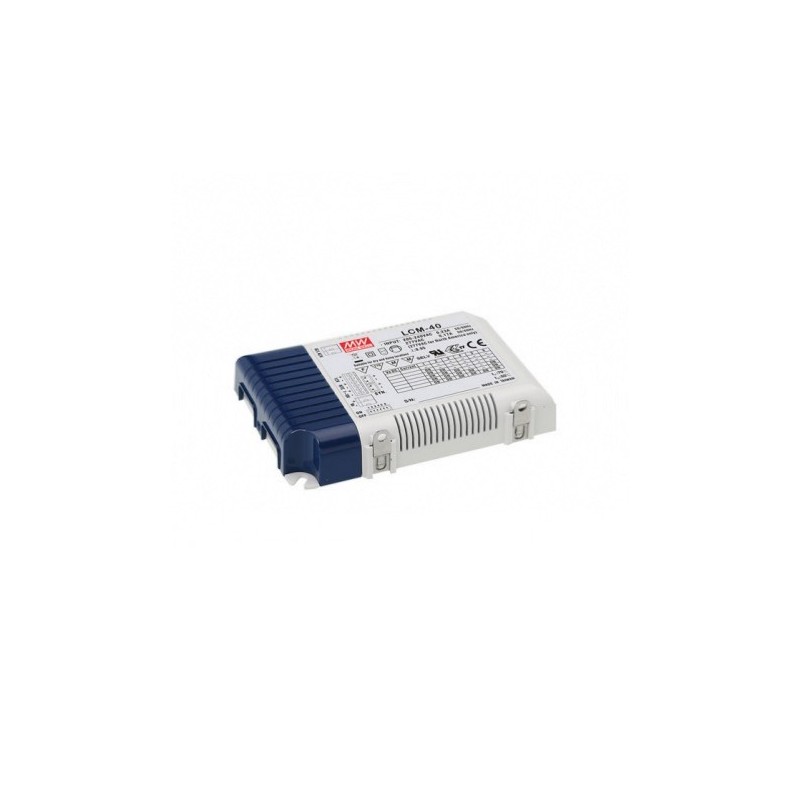

Meanwell Led Power Supply LCM-40 40W Selectable Current 350-1050MA Dimmable EN
  • Meanwell Led Power Supply LCM-40 40W Selectable Current 350-1050MA Dimmable EN
  • Meanwell Led Power Supply LCM-40 40W Selectable Current 350-1050MA Dimmable EN

Watt:
40 W
Power:
Input Voltage:
AC 180-295V
Output Voltage:
Constant current
IP rating:
IP20
Dimmable:
Yes
Dimmable:
Yes - PWM
Dimmable:
Yes - 0-10V
N. Channels:
1 Channel
Size:
Certificate:
Warranty:
Ampere:
1,05 A
design:
Plastic Structure
Connector type:
With clamps
Smart:
No
Type of device:
Driver

Meanwell Led Power Supply LCM-40 40W Selectable Current 350-1050MA Dimmable 0-10V/PWM

2929

€57.00
,
5/ 5
22% Tax included
Ordinalo prima delle 12,30 per riceverlo domani
Ordinalo prima delle 12,30 per riceverlo Lunedì

DATASHEET : LCM-40_SPEC

Quantity
-
+
Totale:
22% Tax included


Spedizione gratuita a partire da 59€
Garanzia minima 2 anni
Sostituzione e consegna in 3 giorni lavorativi
Reso fino a 30 giorni
Consegna entro 24/48H
Oltre 40000 recensioni

Chiamaci +39 03621444684
Richiedi Assistenza
Contattaci tramite Whatsapp

Lun - Gio 9h - 18:30h | Ven 9h - 18h

AC/DC LED Driver Single output Constant Current (CC) Modular output 350/500/600/700/900/1050mA dimming 0-10V & PWM extra 12Vdc 50mA

  • LED MeanWell Power Supply
  • Constant Current CC
  • Input: 180~295VAC
  • Power: 42W
  • Dimming: 0-10V / PWM / Resistive
  • Output Current: selectable - 1050mA max

Table of Selectable Output Current:

Current

Power

Output Voltage Range

350mA

42W

2~100Vdc

500mA

42W

2~80Vdc

600mA

42W

2~67Vdc

700mA (default)

42W

2~57Vdc

900mA

42W

2~45Vdc

1050mA

42W

2~40Vdc

TECHNICAL SPECIFICATIONS

Protection Rating

IP20

Height

23mm

Width

81.5mm

Length

123.5mm

Quantity per Package

54pcs

Power

40W

Constant Current

YES

Constant Voltage

NO

ROHS

YES

Dimming

0-10V, PWM, Resistive

Case

PLASTIC

Input Range

180-295Vac

PFC

YES

Power Supply Type

AC/DC

Number of Outputs

1

Class II

YES

2929
22 Items

Data sheet

Watt
40 W
Power
Input Voltage
AC 180-295V
Output Voltage
Constant current
IP rating
IP20
Dimmable
Yes
Yes - 0-10V
Yes - PWM
N. Channels
1 Channel
Size
Certificate
Warranty
Ampere
1,05 A
design
Plastic Structure
Connector type
With clamps
Smart
No
Type of device
Driver
