Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD
  • Led Strip H.E. Series 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD

Led/Mt:
Watt:
60 W
PCB:
8 mm
Lumen:
CRI:
80+
Luminous Flux:
Input Voltage:
DC 24V
Color Temperature:
2700K
Color Temperature:
3000K
Color Temperature:
4000K
Color Temperature:
6000K
Color Temperature:
5000K
IP rating:
IP20
Double-sided tape:
Dimmable:
Si
Certificate:
Warranty:
Cutting Length:
50 mm
Lunghezza Bobina:
5 Metri
Altezza PCB + SMD:
1,5 mm
WATT al Metro:
12 W/mt
Tipo di Striscia Led:
Luce Bianca
Caratteristiche Speciale:
Alta Efficienza Luminosa
Lumen al metro:
1710 lm/mt

Led Strip H.E. 60W 9000lm 24V IP20 PCB 8mm 800 reel SMD 2835

HE80060

€42.38
,
5/ 5
In Stock
Order it before 12.30 to receive it tomorrow
Order it before 12,30 to receive it on Monday
Color Temperature (Kelvin)
Quantity
-
+
Totale:
0% Tax included


Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

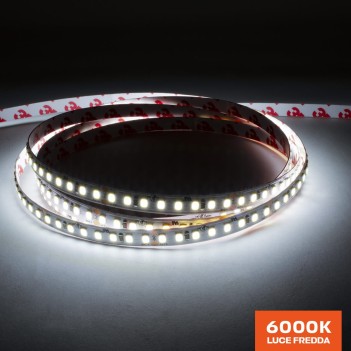

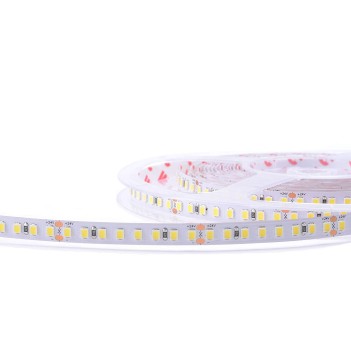

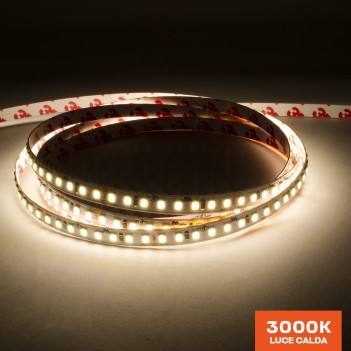

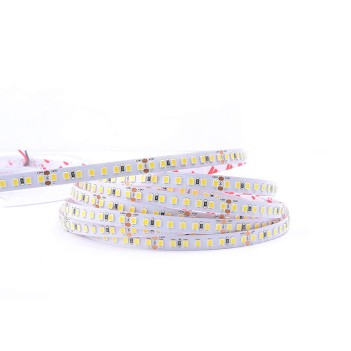

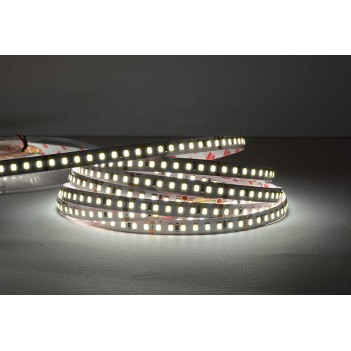

5M High-Efficiency Led Strip

The working voltage of the strip is 24V DC (Power Supply NOT Inclued)

You could cut it every 8 LEDs (50mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.

Rated Power: 60W. Power Consumption: 11.5 W/m

Brightness: 10.000 Lm. Lumen per Meter: 1710 Lm/m

DATA SHEET

5M 2835 LED Strip with 3M double-sided adhesive tape backing.

160Led/mt (800 LEDs in total), you can cut it every 8 LEDs.

This is one of the most powerful LED strips on the market right now, and a modern and energy saving alternative to conventional LED tubes.

Quality product, perfect for illuminating your private or commercial space.

Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel.

It is highly suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.

SPECIFICATION

Product Code: 2580
PCB Width: 8mm
PCB+SMD 1.5mm
Length:5 meter per roll
Voltage: 24V DC
Rated Power: 60W
Power Consumption: 11.5 W/m
Brightness: 10.000 Lm
Lumen per Meter: 1710 Lm/mt
Colour Temperature (CCT): 4000K
Colour Rendering (CRI) 80+
LED Type: 2835 x 800pcs

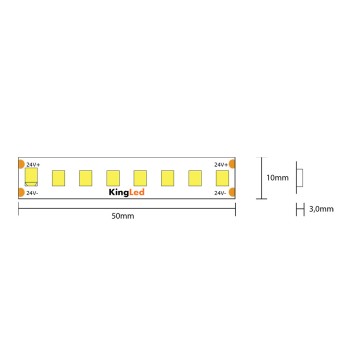

Cutting Length: Every 8 LEDs
Waterproof Type: IP20
Dimming: Yes.
Working Temperature: -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years

2580
286 Items

Data sheet

Led/Mt
Watt
60 W
PCB
8 mm
Lumen
CRI
80+
Luminous Flux
Input Voltage
DC 24V
Color Temperature
2700K
3000K
4000K
5000K
6000K
IP rating
IP20
Double-sided tape
Dimmable
Si
Certificate
Warranty
Cutting Length
50 mm
Lunghezza Bobina
5 Metri
Altezza PCB + SMD
1,5 mm
WATT al Metro
12 W/mt
Tipo di Striscia Led
Luce Bianca
Caratteristiche Speciale
Alta Efficienza Luminosa
Lumen al metro
1710 lm/mt

Specific References

ean13
7438636969874
