Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina
  • Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina

Led/Mt:
Watt:
130 W
PCB:
10 mm
Lumen:
CRI:
80+
Luminous Flux:
Input Voltage:
DC 24V
Color Temperature:
3000K
Color Temperature:
4000K
Color Temperature:
6000K
IP rating:
IP20
Light Angle:
120°
Double-sided tape:
Dimmable:
Si
Size:
Certificate:
Warranty:
Cutting Length:
50 mm
Lunghezza Bobina:
5 Metri
WATT al Metro:
23,9 W/mt
Tipo di Striscia Led:
Luce Bianca
Caratteristiche Speciale:
Alta Efficienza Luminosa
Lumen al metro:
3540 lm/mt

Striscia led serie H.E. 130W 18000lm 24V IP20 PCB 10mm bobina da 800 SMD 2835

HE800130

€52.87
,
5/ 5
In Stock
Order it before 12.30 to receive it tomorrow
Order it before 12,30 to receive it on Monday
Color Temperature (Kelvin)
Quantity
-
+
Totale:
0% Tax included


Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

Logo con Sito

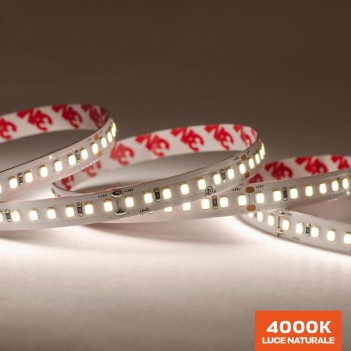

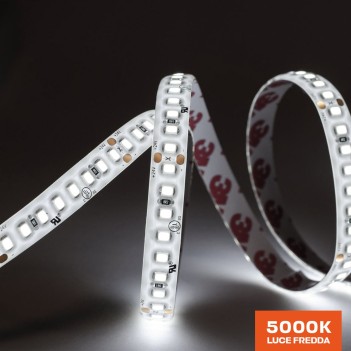

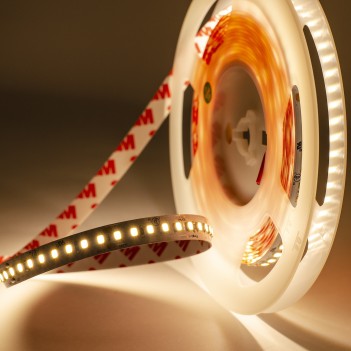

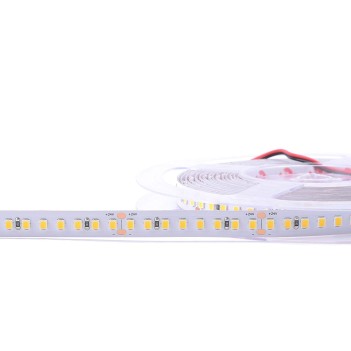

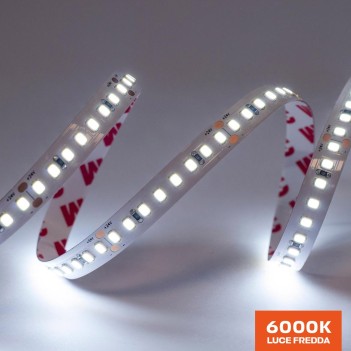

5M High-Efficiency Led Strip

The working voltage of the strip is 24V DC (Power Supply NOT Inclued)

You could cut it every 8 LEDs (50mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.

Rated Power: 130W. Power Consumption: 23.9 W/m

Brightness: 18.000 Lm. Lumen per Meter: 3540 Lm/mt



 DATA SHEET

5M LED Strip with 3M double-sided adhesive tape backing.

160Led/mt (800 LEDs in total), you can cut it every 8 LEDs.

This is one of the most powerful LED strips on the market right now, and a modern and energy saving alternative to conventional LED tubes. Quality product, perfect for illuminating your private or commercial space.

Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel. It is highly suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.



 Specification:

PCB Width: 10mm
PCB+SMD 1.5mm
Length:5 meter per roll

Voltage: 24V DC

Rated Power: 130W
Potenza Effettiva 23.9W /mt
Brightness: 18.000lm
Lumen per Meter: 3540lm /mt
Colour Rendering (CRI) 80+

LED Type: 2835 x 800pcs

Cutting Length: Every 8 LEDs
Waterproof Type: IP20

Dimming: Yes.
Working Temperature:  -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years

2632
655 Items

Data sheet

Led/Mt
Watt
130 W
PCB
10 mm
Lumen
CRI
80+
Luminous Flux
Input Voltage
DC 24V
Color Temperature
3000K
4000K
6000K
IP rating
IP20
Light Angle
120°
Double-sided tape
Dimmable
Si
Size
Certificate
Warranty
Cutting Length
50 mm
Lunghezza Bobina
5 Metri
WATT al Metro
23,9 W/mt
Tipo di Striscia Led
Luce Bianca
Caratteristiche Speciale
Alta Efficienza Luminosa
Lumen al metro
3540 lm/mt

Specific References

ean13
7438636969911
