Led/Mt:
Watt:
100 W
PCB:
10 mm
Lumen:
CRI:
90+
Input Voltage:
DC 24V
Color Temperature:
3000K
Color Temperature:
4000K
Color Temperature:
6000K
IP rating:
IP20
Certificate:
Warranty:
Cutting Length:
23 mm
Lunghezza Bobina:
5 Metri
WATT al Metro:
16,9 W/mt
Tipo di Striscia Led:
Luce Bianca
Caratteristiche Speciale:
Alta Resa Cromatica
Lumen al metro:
1480 lm/mt

Led Strip H.C. Series CRI90 100W 10500lm 24V IP20 PCB 10mm Coil of 1400 SMD 2216

HC1400100

Color Temperature (Kelvin)

Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

https://www.kingled.it//img/cms/Logo%20con%20Sito.jpg?1575021262975

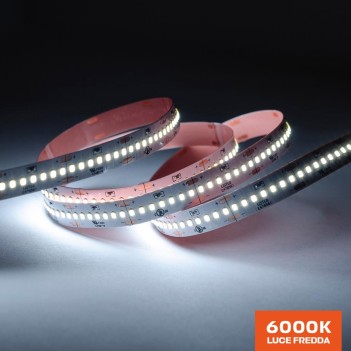

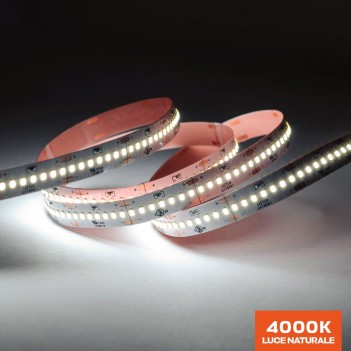

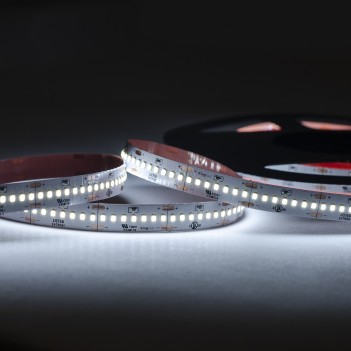

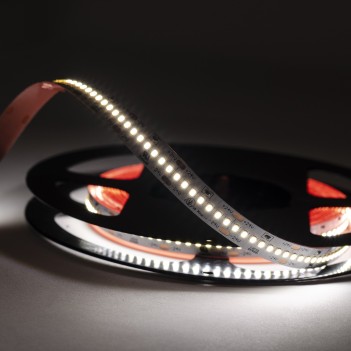

LED STRIP H.C. HIGH CRI 100W 10500LM 24V IP20 PCB 10MM 5MT 1400 units SMD 2216 LEDs

5M Special LED Strip with 3M double-sided adhesive tape backing.

80Led/mt (400 LEDs), you can cut it every 8 LEDs.

Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel. It is highly suggested to install this LED strip on an aluminum bar to ensure proper cooling and thus increasing the lifespan.

The working voltage of the strip is 24V DC (Power Supply NOT Included)

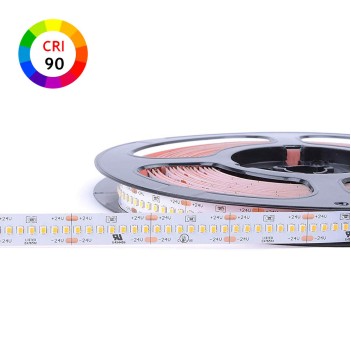

This product has a colour rendering index (CRI) of 95+. It is thanks to this peculiarity, that it is perfect to install in commercial and public places, such as stores and boutiques, where a light of excellent quality has a fundamental role.

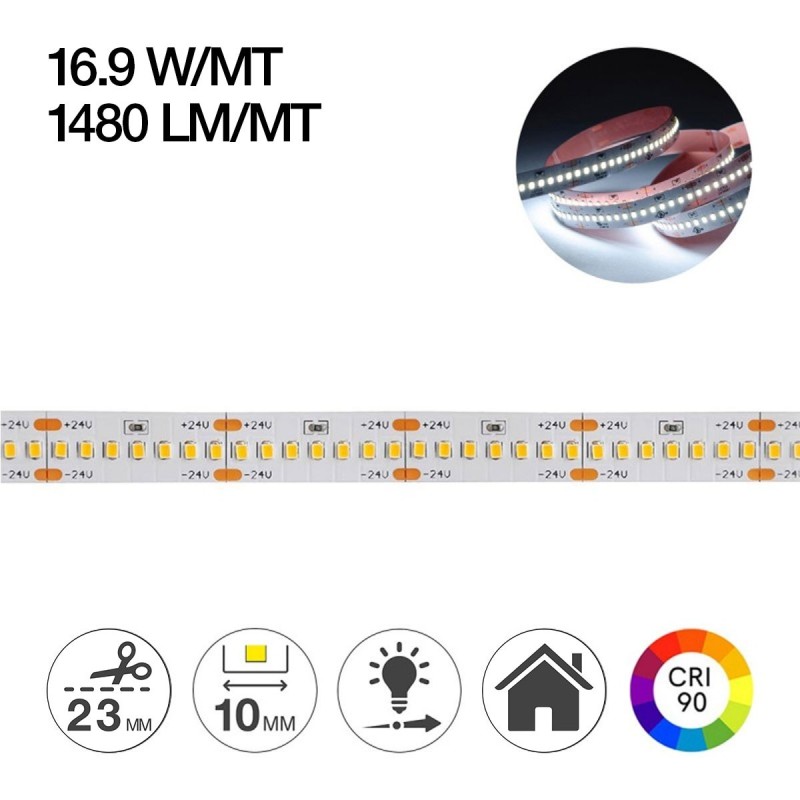

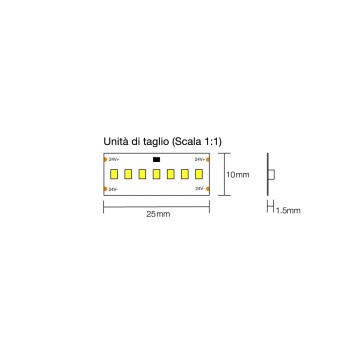

The strip can be dimmed and cut every 7 LEDs (23mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.



Rated Power: 100W. Power Consumption: 16,9 W/m

Brightness: 10500 Lm, Lumen per meter: 1480 Lm/Mt



Specification:

PCB Width: 10mm
PCB+SMD 1.5mm
Length: 5 meter per roll
Voltage: 24V DC
Rated Power: 100W
Power Consumption: 16,9W /mt
Brightness: 10500lm
Lumen per Meter: 1480lm /mt
Colour Temperature (CCT): 3000K/4000K/6000K
Colour Rendering (CRI) 90+
LED Type: 2216 x 1400pcs
Cutting Length: Every 7 LEDs
Waterproof Type: IP20
Dimming: Yes.
Working Temperature: -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years

2405

Data sheet

Led/Mt
Watt
100 W
PCB
10 mm
Lumen
CRI
90+
Input Voltage
DC 24V
Color Temperature
3000K
4000K
6000K
IP rating
IP20
Certificate
Warranty
Cutting Length
23 mm
Lunghezza Bobina
5 Metri
WATT al Metro
16,9 W/mt
Tipo di Striscia Led
Luce Bianca
Caratteristiche Speciale
Alta Resa Cromatica
Lumen al metro
1480 lm/mt
