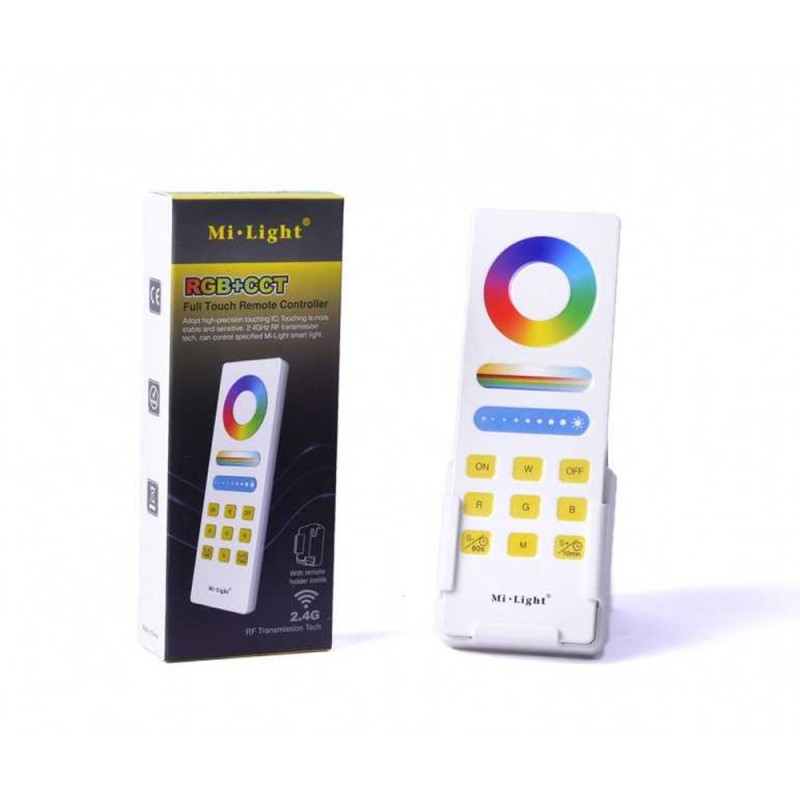

Product with a modern design featuring integrated 2.4GHz RF technology. It allows for remote control of Mi-Light devices from a distance of up to 30 meters. It can manage up to 4 different zones, and each zone can control an unlimited number of Mi-Light lighting fixtures.
DATASHEET:
Model: FUT088
Operating Temperature: -20° to +60°
Voltage: 3V(2AAA)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmission Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Dimensions: 4716.5*134mm

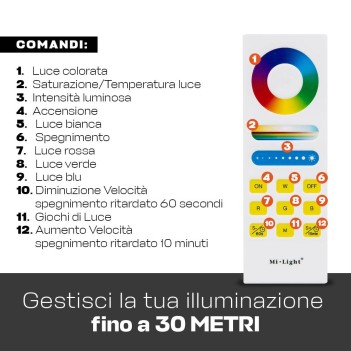

WHAT ARE THE FUNCTIONS OF THIS REMOTE CONTROL?
This remote control is capable of simultaneously managing a multitude of LED devices and Mi-Light receivers. With a compatible device, it can:
Turn On and Off
Dim the brightness from 0% to 100%
Change the Kelvin gradient from 2700K to 6500K
Remote control up to 30 meters
Control an infinite number of Mi-Light devices simultaneously
Activate night mode
Choose from 16 million colors
Quickly change color via the color ring
Adjust color saturation
Choose from 9 game modes
Adjust game speed
Creating a LED home automation system is simple and innovative.
HOW TO ASSOCIATE THIS REMOTE CONTROL WITH A RECEIVER OR BULB?
Turn off the bulb or receiver using the switch
Turn on the bulb or receiver using the switch
As soon as the strip or bulb emits light, press the "I" symbol repeatedly in one of the 8 zones on the remote control
If synchronization has occurred, the LED will flash 3 times.
If synchronization has not occurred, check if:
The batteries in the remote control are functional and inserted correctly.
The remote control or controller is a compatible model or not.
Repeat the synchronization process.
