Led Strip H.E. Series 130W 18000lm 24V IP65 PCB 10mm 800 reel SMD 2835

5M H.E. High Efficiency Led Strip – Natural White 4000K – Ultra Bright

The working voltage of the strip is 24V DC (Power Supply NOT Included)

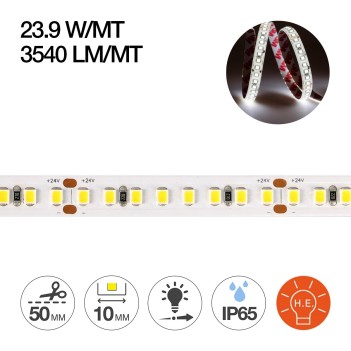

The strip can be dimmed and cut every 8 LEDs (50mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.

Rated Power: 130W. Power Consumption: 23.9 W/m

Brightness: 18000 Lm, Lumen per meter: 3540 Lm/Mt

 DATA SHEET

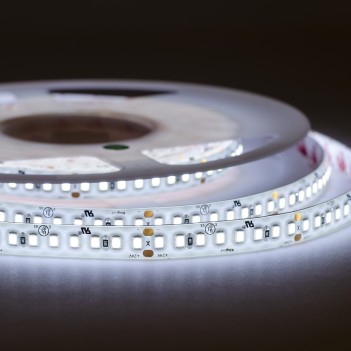

5M 2835 LED Strip with 3M double-sided adhesive tape backing.

160Led/mt (800 LEDs in total), you can cut it every 8 LEDs(50mm).

This is one of the most powerful LED strips on the market right now, and a modern and energy saving alternative to conventional LED tubes. Quality product, perfect for illuminating your private or commercial space.

Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel. It is highly suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.

 WARNING: Once cut off, it loses its IP65 rating.  You can reseal your LED Strips with silicone sealant, which allows to restore the IP65 degree of protection.

SPECIFICATION

Product Code: 2846
PCB Width: 10mm
PCB+SMD 2 mm
Length:5 meter per roll

Voltage: 24V DC

Rated Power: 130W

Power Consumption: 23.9 W/m

Brightness 18000 Lm

Lumen per Meter: 3540Lm/mt

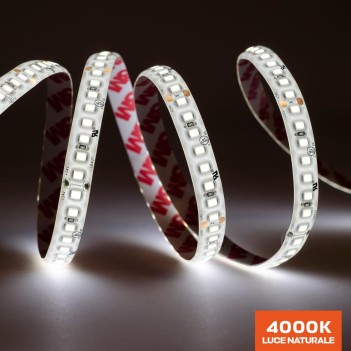

Colour Temperature: Natural White 4000K

Colour Rendering (CRI) 80+

LED Type: 2835 x 800pcs

Cutting Length: Every 8 LEDs (50mm)
Waterproof Type: IP65

Dimming: Yes.
Working Temperature:  -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years
