Side View Led Strip CRI90 48W 2400lm 24V IP20 PCB 8mm 600 SMD
  • Side View Led Strip CRI90 48W 2400lm 24V IP20 PCB 8mm 600 SMD
  • Side View Led Strip 48W 2400lm 24V IP20 PCB 8mm 600 SMD Reel 315
  • Side View Led Strip 48W 2400lm 24V IP20 PCB 8mm 600 SMD Reel 315
  • Side View Led Strip 48W 2400lm 24V IP20 PCB 8mm 600 SMD Reel 315
  • Side View Led Strip 48W 2400lm 24V IP20 PCB 8mm 600 SMD Reel 315
  • Side View Led Strip 48W 2400lm 24V IP20 PCB 8mm 600 SMD Reel 315

Led/Mt:
Watt:
PCB:
Power Consumption:
Lumen:
Really Lumen:
CRI:
Luminous Flux:
Input Voltage:
Color Temperature:
Color Temperature:
Color Temperature:
IP rating:
Double-sided tape:
Dimmable:
Certificate:
Warranty:
Cutting Length:
Lunghezza Bobina:
5 Metri
Altezza PCB + SMD:
2 mm
WATT al Metro:
9,6 W/mt
Tipo di Striscia Led:
Luce Bianca
Caratteristiche Speciale:
Caratteristiche Speciale:

Side View Led Strip CRI90 48W 2400lm 24V IP20 PCB 8mm 600 SMD 315 coil

SV60048

Color Temperature (Kelvin)

Free shipping from 59 € in Italy
Minimum 2 year warranty
Replacing and delivery in 3 working days

Returns up to 30 days
Delivery within 24 / 48H
Over 40,000 reviews

Call Us +39 03621444684
Request Assistance
Contattaci tramite Whatsapp

Mon - Thu 9h - 18:30h | Fri 9h - 18h
100% secure payments

https://www.kingled.it//img/cms/Logo%20con%20Sito.jpg?1575566908304

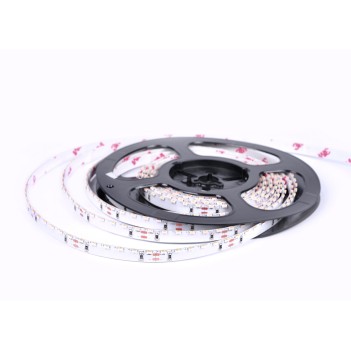

5M Special 315 LED Strip with 3M double-sided adhesive tape backing.

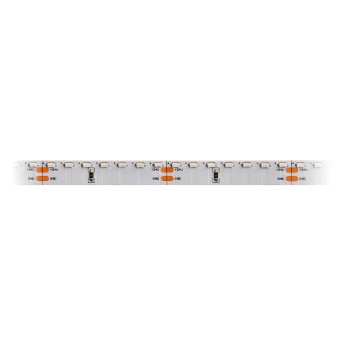

120Led/mt (600 LEDs), you can cut it every 100 mm 6 Led.

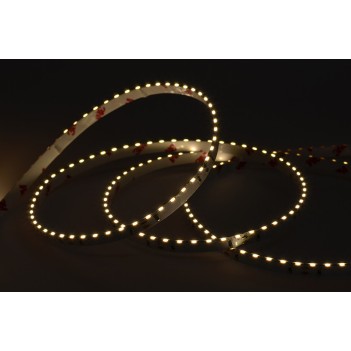

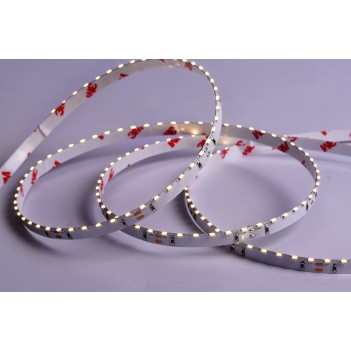

LED strips are specially designed with LEDs shining sideways. Used for for illuminating vertical curved faces. This side-view LED strip shines the light off the edge of the strip, which is perfect for many decorative applications. You get high Color Rendering Index for superior quality lighting, and they work with all the same dimming and control systems as our other LED strip lighting.



Connecting multiple LED strip lights together, you will need to connect them to the power supply in Parallel. It is highly suggested to install this LED strip on an aluminium bar to ensure proper cooling and thus increasing the lifespan.

The working voltage of the strip is 24V DC (Power Supply NOT Included)

The strip can be dimmed and cut every 6 LEDs (50mm) to fit the length you want, but the cut off part will need extra power supply and connector, or it won't light up.



Rated Power: 48W. Power Consumption: 9.6 W/m

Brightness: 2400 Lm, Lumen per meter: 480 Lm/Mt



Specification:

PCB Width: 8mm
PCB+SMD 2mm
Length:5 meter per roll
Voltage: 24V DC
Rated Power: 48W
Power Consumption: 9.6W /mt
Brightness: 2400lm
Lumen per Meter: 480lm /mt
Colour Temperature (CCT): 3000K/4000K/6000K
Colour Rendering (CRI) 90+
LED Type: 315 x 600pcs
Cutting Length: Every 6 LEDs
Waterproof Type: IP20
Dimming: Yes.
Working Temperature: -20° +40°
Certifications: CE / RoSH / TUV / UL
Warranty: 3 years

2843

Data sheet

Led/Mt
Watt
PCB
Power Consumption
Lumen
Really Lumen
CRI
Luminous Flux
Input Voltage
Color Temperature


IP rating
Double-sided tape
Dimmable
Certificate
Warranty
Cutting Length
Lunghezza Bobina
5 Metri
Altezza PCB + SMD
2 mm
WATT al Metro
9,6 W/mt
Tipo di Striscia Led
Luce Bianca
Caratteristiche Speciale
