Mi-Light 4 Zone CCT Remote Controller for CCT LED Lights FUT007

WIFI DIMMER REMOTE MONOCOLOR AND DUAL WHITE FUT007

Product with a modern design featuring integrated 2.4GHz RF technology. It allows remote control of Mi-Light devices up to 30 meters away.

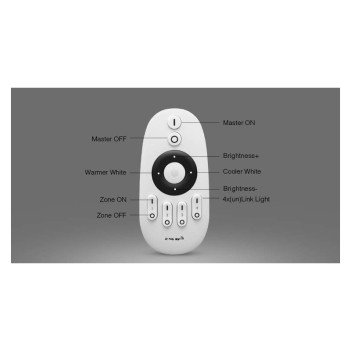

WHAT ARE THE FUNCTIONS OF THIS REMOTE?

This remote can simultaneously manage an infinite number of LED devices and Mi-Light receivers. With a compatible device, it can:

Turn On and Off

Dim the brightness from 0% to 100%

Change the Kelvin range from 2700K to 6500K

Remote control up to 30 meters away

Command an infinite number of Mi-Light devices simultaneously

Activate night mode

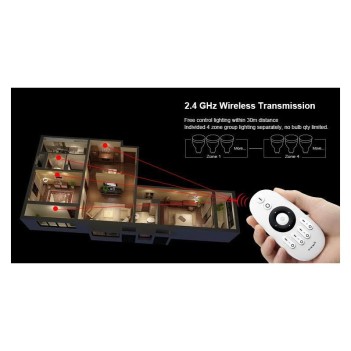

Manage up to 4 Zones simultaneously or separately

TECHNICAL SPECIFICATIONS

Voltage: 3V

Transmission Frequency: 2400-2483.5MHz

Modulation Method: GFSK

Transmitting Power: 6dBm

Working Temperature: -20~60℃

Standby Power: 20uA

Control Distance: 30 meters

Dimensions: 110.5 x 53 x 22 mm

HOW TO PAIR THIS REMOTE WITH A RECEIVER OR BULB?

Turn off the bulb or receiver from the switch

Turn on the bulb or receiver from the switch

As soon as the strip or bulb emits light, press the " I " symbol repeatedly in one of the 4 zones on the remote

If synchronization occurs, the LED will blink 3 times.

If synchronization does not occur, check if:

The batteries in the remote are functional and inserted correctly.

Verify if the remote or controller is a compatible model or not.

Repeat the synchronization process.
