Mi-Light B1 4-Zone Brightness Dimming Smart Panel Remote Controller For Single Colour LED Lights

Wall-mounted remote control with 4 zones for single-color lighting. Compatible with Milight/Miboxer single-color series products. Allows remote management of Mi-Light devices up to 30 meters away. Fast installation, portable, and compatible with Mi-Light single-color devices.

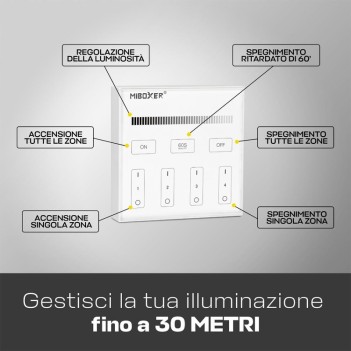

WHAT ARE THE FUNCTIONS OF THIS REMOTE CONTROL?

This remote control can simultaneously manage an unlimited number of LED devices and Mi-Light receivers.

WITH A COMPATIBLE DEVICE, IT CAN:

Control 4 zones simultaneously or separately, each zone with an unlimited number of Mi-Light devices.

Remote management up to 30 meters

Turn on and off

Dim from 0% to 100%

Night light for children

Delayed shutdown at 60 seconds

Has a memory function to resume previous settings.

TECHNICAL SPECIFICATIONS

Voltage: 3V (2 AAA batteries not included) / Plug-In 3.2V

Transmission Frequency: 2400-2483.5MHz

Modulation Method: GFSK

Transmission Power: 6dBm

Standby Power: 20uA

Operating Temperature: -20~60℃

Maximum Control Distance: 30 meters

Dimensions: 120x84x22mm

HOW TO ASSOCIATE A REMOTE WITH THE RECEIVER?

Turn off from the switch

Turn on from the switch

As soon as the strip emits light, press the "I" symbol repeatedly in one of the zones of the remote or controller

If the synchronization has occurred, the spotlight flashes 3 times.

If synchronization has not occurred, check:

The batteries in the remote are functional and correctly inserted.

Check if the remote or controller is a compatible model or not.

Ensure all cables are connected correctly.

Repeat the synchronization process.
